If you're running a roofing or steel structure business, you've probably faced this dilemma: you need to produce two different profiles, but buying two separate machines means double the cost, double the space, and double the headache.

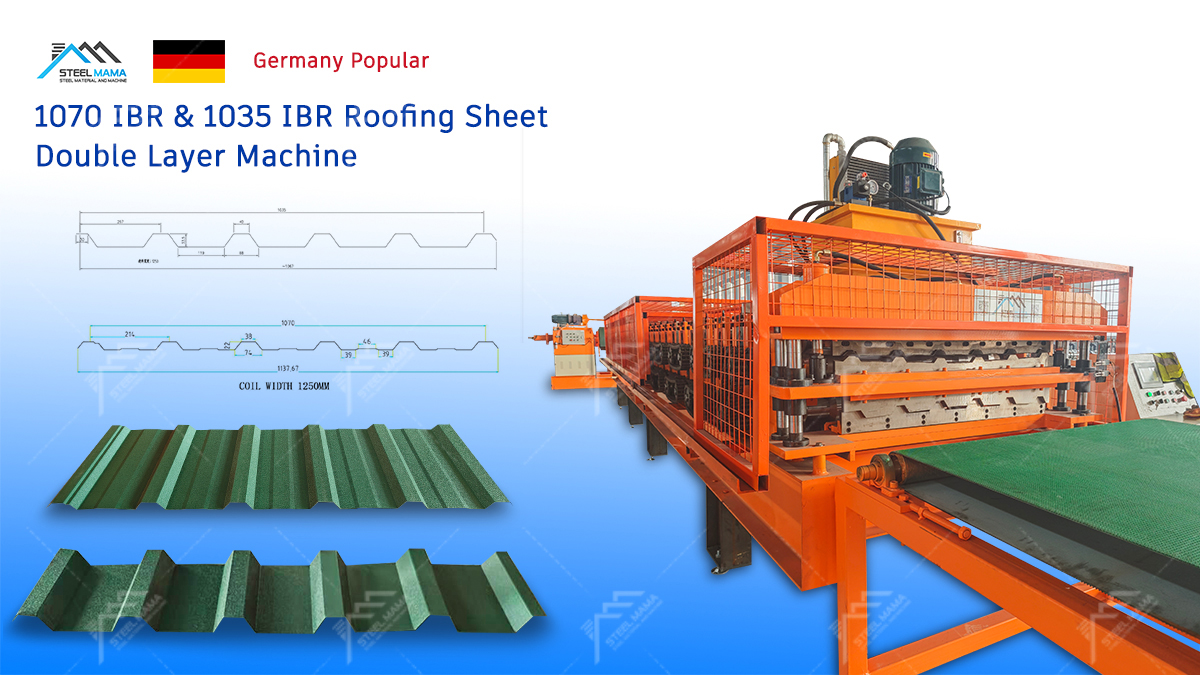

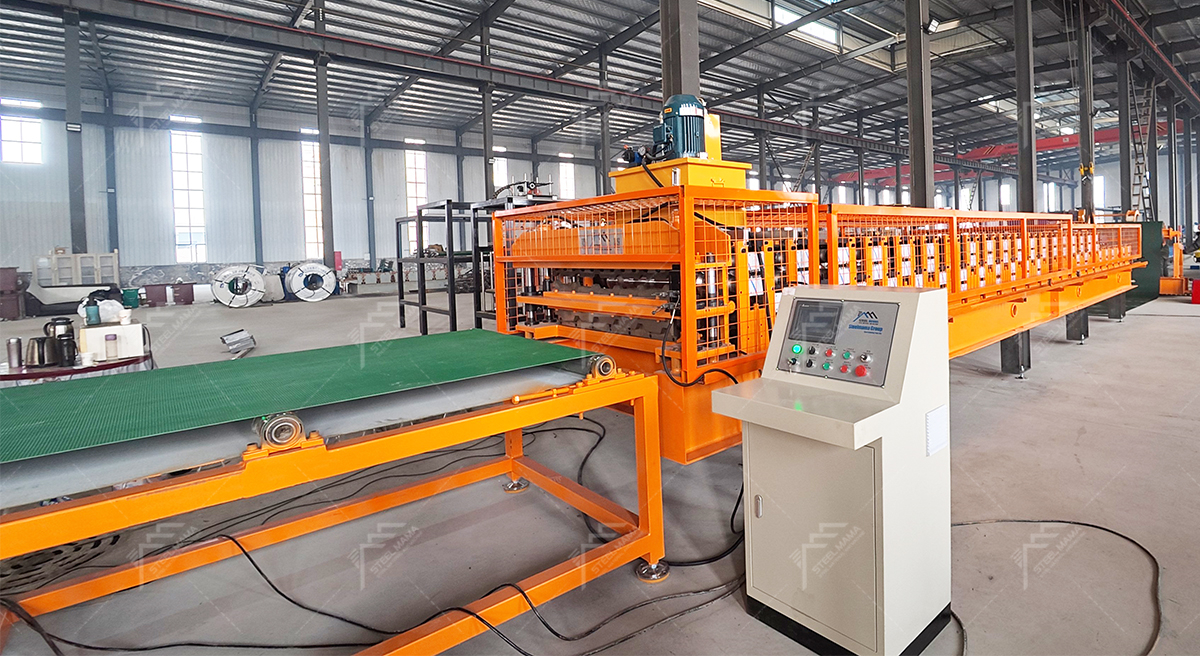

A double layer roll forming machine solves this problem. It combines two complete roll forming lines into a single machine frame — one layer on top of the other. One machine produces two different profiles, with a simple switch between the upper and lower layers. For new factory owners and established manufacturers alike, this single piece of equipment can transform your production capacity without breaking the bank.
In this guide, I'll walk you through the machine components, key advantages, technical specifications, and why it might be exactly what your factory needs.
Part 1: Machine Components — A Complete Breakdown
A double layer roll forming machine is more than just two sets of rollers stacked together. It's a carefully integrated system where every component works in harmony. Here's what makes up the complete machine line.
1. Decoiler (Uncoiler)
The decoiler is where the process begins. It holds the steel coil and feeds material into the forming line at a controlled rate.
Key features:
- Available in manual or hydraulic versions
- Typically handles coils up to 5 tons
- Compatible with galvanized steel, color-coated steel, aluminum, and other metal sheets
Why it matters: A reliable decoiler ensures consistent feeding speed and prevents material jams.
2. Feeding / Guiding Device
Before the steel strip enters the forming stations, it passes through a feeding guide. This ensures the material enters the rollers at the correct angle and position, preventing misalignment.
Why it matters:Even a slight feed misalignment can cause defective products. A good guiding device protects your material investment.

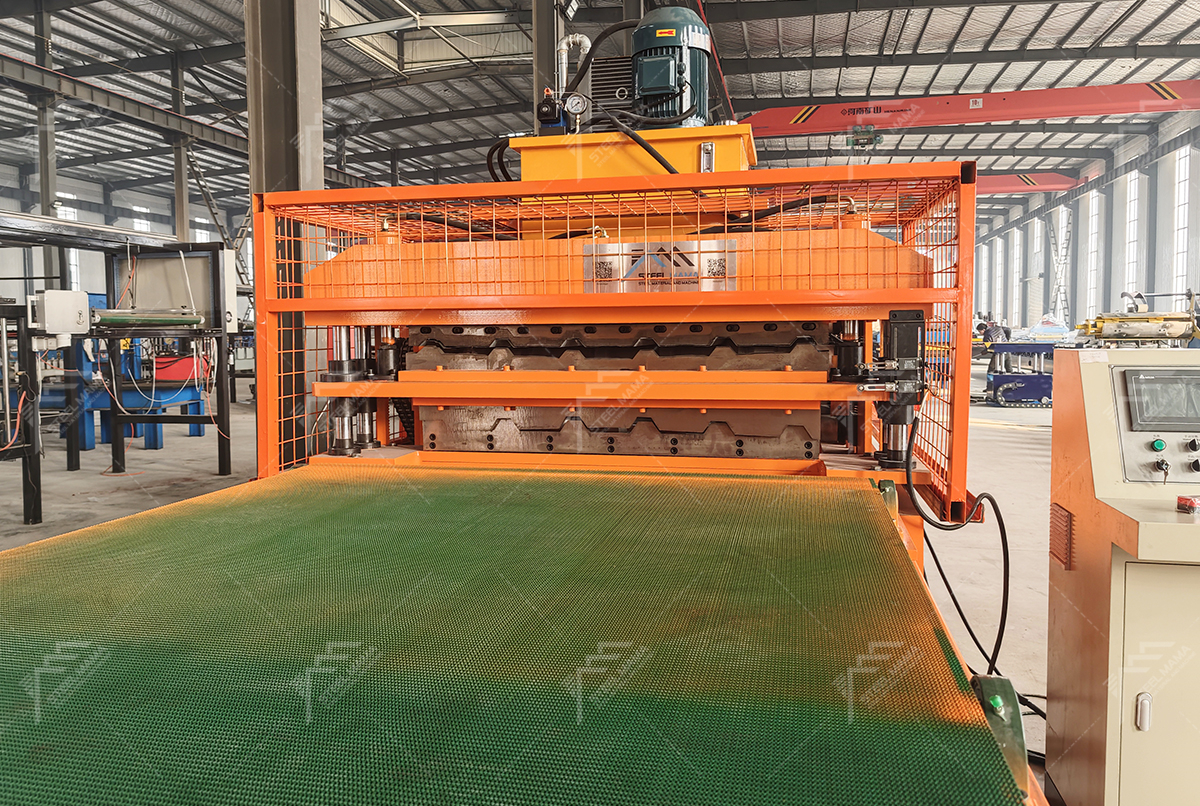

3. Main Roll Forming Machine (Two Layers)
This is the heart of the machine. The double layer design features two complete sets of forming rollers installed on separate stands. One profile runs on the bottom layer, while another runs on the upper layer.
Roller Specifications:
- Material: 45# forged steel with hard chrome plating
- Processing: CNC-machined, heat-treated for durability
- Roller stations: 9–18 rows per layer
- shaft diameter: Typically 70–85mm
Key Note: The two layers do not run simultaneously. You produce one profile at a time, using the control system to switch between layers.
Why it matters: The quality of the rollers directly determines product quality. Chrome-plated, precision-ground rollers produce smoother surfaces and longer machine life.
4. Cutting System (Hydraulic Shear)
After forming, the cutting system trims the profile to the required length.
Specifications:
- Cutting method: Hydraulic-driven
- Blade material: Cr12 mold steel, heat-treated
- Cutting accuracy: ±0.5mm to ±1mm
Why it matters:A precise cutting system reduces waste and ensures panels meet exact length specifications.
5. Hydraulic Station
The hydraulic system powers the cutting mechanism. Once hydraulic oil fills the tank, the pump drives the cutter.
Key features: Gear pump with solenoid valves, auto-off during idle to conserve energy.
Why it matters: A well-designed hydraulic system ensures clean, burr-free cuts every time.
6. Control System (PLC)
Modern double layer machines use a PLC system with a touchscreen interface. This controls everything from profile selection to cutting length to production speed.
Key capabilities:
- Easy switching between upper and lower layers
- Programmable sheet length and production quantity
- Automatic and manual operation modes
Why it matters: A user-friendly control system reduces operator training time and minimizes production errors.

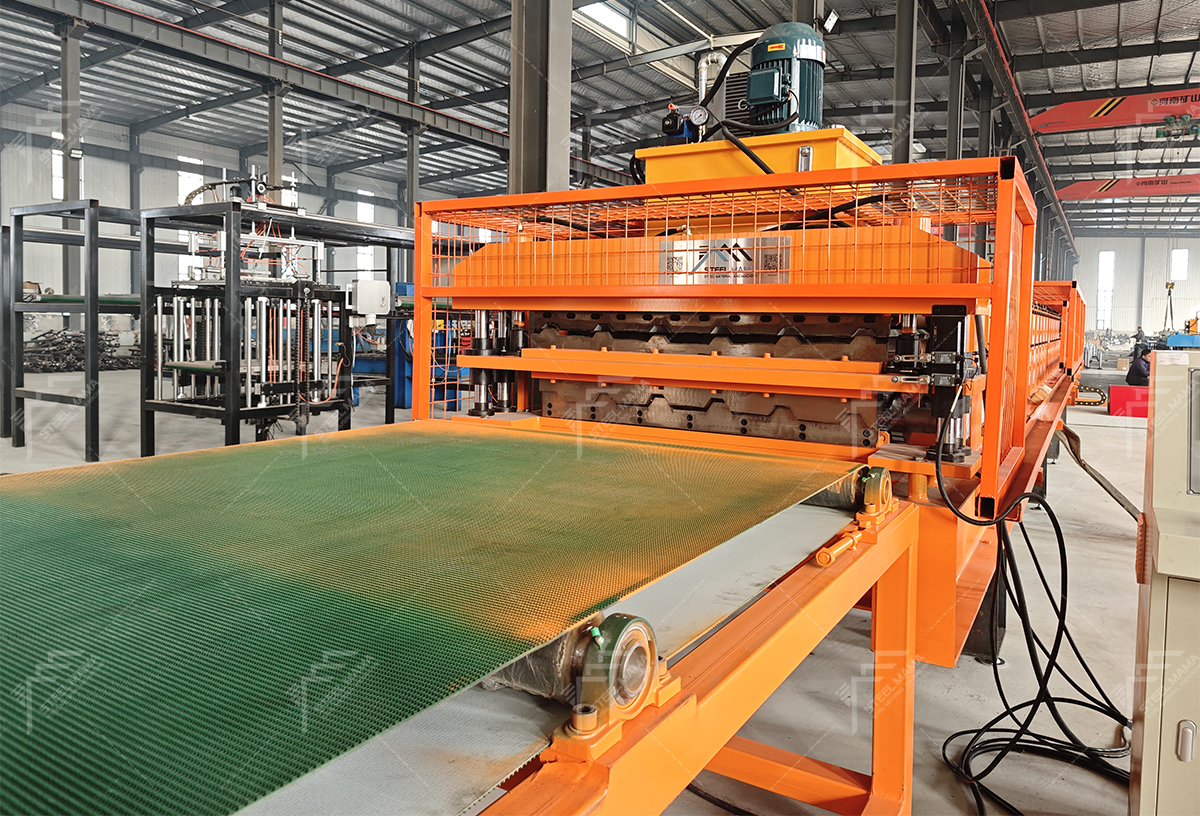

7. Output Table
The final component receives finished products after cutting. The table is height-adjustable to accommodate products from both layers.
Why it matters: A stable output table prevents product damage and helps maintain quality control.
Part 2: Key Advantages
1. Save Money
Instead of buying two separate machines, you buy one that does both. One machine purchase, one maintenance cost, one investment.
2. Save Space
Two separate machines need their own floor space. A double layer machine combines everything into a single footprint — typically 6–11 meters long and 1.5–2.2 meters wide.
Perfect for: Factories with limited space, urban workshops, or on-site operations.
3. Save Labor Costs
Two machines would typically need two operators. With a double layer machine, one operator handles production for both profiles.
4. Save on Shipping
Shipping one machine internationally is cheaper than shipping two. One container, one customs clearance, one freight cost.
5. Quick Profile Switching
Switching between profiles is simple — just press a button on the control cabinet. No complex die changes or lengthy re-tooling.
6. Customizable
You can choose any two profiles — IBR and corrugated, tile and trapezoidal, or any combination that matches your market demand.
7. Durable Construction
These machines are built to last:
- Rollers: 45# steel with hard chrome plating
- Blades: Cr12 mold steel
- Frame: Heavy-duty steel for structural integrity
Part 3: Technical Specifications
| Parameter | Typical Range |
|-----------|---------------|
| Material Thickness | 0.2–0.8mm |
| Material Width | 1000–1250mm |
| Production Speed | 8–15m/min |
| Roller Stations | 9–18 per layer |
| Main Motor Power | 9–11kW |
| Hydraulic Power | 3–5.5kW |
| Cutting Accuracy | ±0.5mm – ±1mm |
| Machine Weight | 4.5–10 tons |
Part 4: Who Is This Machine For?
New Factory Owners – Start with two product lines for the price of one machine.
Space-Constrained Facilities – Save valuable floor space.
Cost-Conscious Manufacturers – Maximize ROI with a single investment.
On-Site Operations– Compact footprint works well at construction sites.
Part 5: After-Sales Support
Good after-sales support should include:
Installation Guidance – Help setting up and commissioning your machine.
Technical Support – Ongoing help via phone, video call, or messaging.
Spare Parts– Critical parts available when you need them.
Final Thoughts
Before ordering a double layer roll forming machine, have these details ready:
1. What two profiles do you want to produce?
2. What material thickness and width will you use?
3. What's your expected daily output?
4. What's your factory space like?
If you're a first-time buyer, don't worry if you don't have all the answers. A good manufacturer will guide you through the selection process. Just ask the right questions and be upfront about what you need.
---
*Have questions about whether a double layer machine is right for your factory? Feel free to reach out — I'm always happy to share what I've learned.
